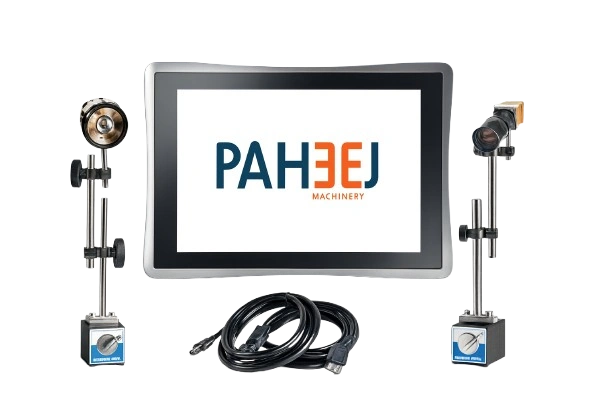

Mould Protector Vision Camera System
Where are Mould Protector Systems Used?
Insert Moulding
Automatically verify insert placement before injection. The mould inspection vision camera ensures inserts are present, aligned, and secured, avoiding costly tooling damage.
Medical Components
Ideal for syringes, diagnostic parts, and critical medical mouldings where accuracy and cleanliness cannot be compromised.
Automotive Parts
Detect missing parts, improper ejection, or slide-core issues. Ensures safety-critical components are produced consistently without mould wear.
Packaging & Closures
Ensure every cavity is filled, prevent short shots, and eliminate flashes, supporting high-speed packaging applications.
Electronics & Mobile Parts
Ideal for multi-cavity and small precision parts that require fast, reliable, and automated visual inspection.
Why Choose a Mould Protector Vision Camera System?
High-Speed, Accurate Inspection
Powered by high-speed processing and high-resolution cameras, the system captures every shot with clarity, detecting abnormalities within milliseconds.
Multi-Camera Support
Monitor complex, multi-cavity, or insert moulding setups from multiple angles to ensure complete mould protection across all cavities.
Optimised LED Lighting
The LED lighting setup delivers stable illumination in any environment, improving accuracy for mould defect detection and cycle-by-cycle monitoring.
Easy to Operate
A multi-point sensitive touch display makes setup, calibration, and parameter adjustments simple, even for new operators.
Universal Machine Compatibility

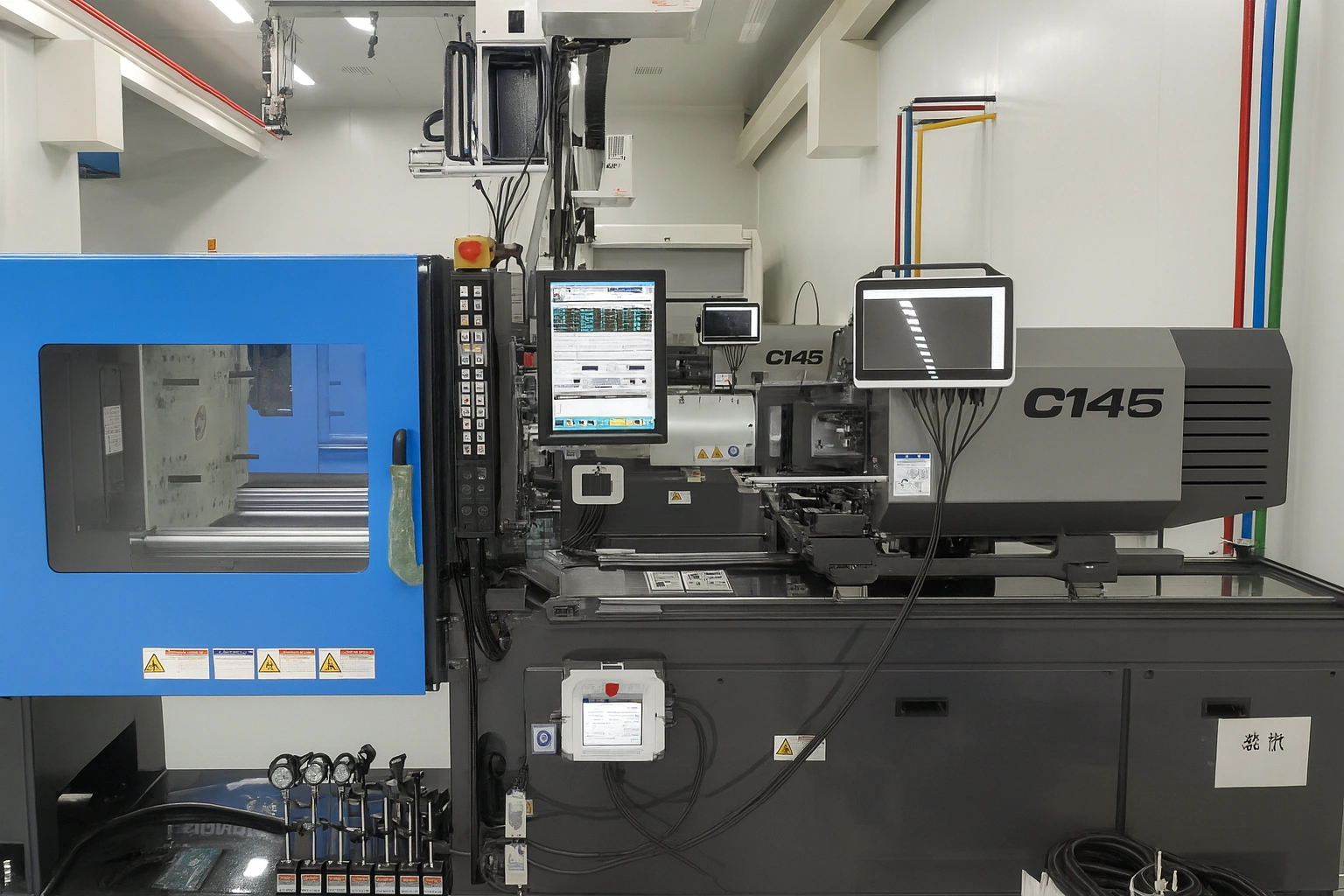

The vision mould protection system integrates seamlessly with any vertical injection moulding machine, electric, hydraulic, or hybrid.
Reliable Machine Interlocking
When the system detects missing parts, incomplete ejection, or abnormal mould movement, it automatically stops the machine to prevent damage.
Consistent, Clean Production
Cycle-by-cycle image capture ensures smooth, uninterrupted production while reducing scrap and extending mould life.
What Can the Mould Protector Detect?
Powered by advanced vision algorithms, the system functions as a complete mould defect detection system, capable of identifying:
- Missing parts / unfilled cavities
- Parts not fully ejected
- Incorrect or incomplete movement of slide cores
- Ejector pin retraction issues
- Insert misplacement before injection
- Abnormal flashes
- Short shots or partially filled parts
