Quality Control Best Practices for Vertical Injection Molding Machines in Precision Manufacturing
Vertical injection molding machines play a central role in precision manufacturing operations that demand consistent part quality and dimensional accuracy. The applications of vertical injection moulding machines range from insert molding to multi-material production, where even minor process variations can impact component performance and production efficiency.
Quality control in vertical injection molding operations determines production consistency, defect rates, and overall manufacturing reliability. This article presents practical quality control strategies designed specifically for vertical injection molding environments, focusing on methods that maintain process stability and protect tooling investments.
The Importance of Quality Control in Vertical Injection Molding
Vertical injection molding machines are used extensively in precision molding applications where component accuracy proves essential. The vertical orientation and process characteristics create specific quality considerations, including insert placement verification, fill completeness monitoring, and flash detection.
Effective quality control practices support output consistency while reducing scrap generation. These practices also protect mould tooling from damage that can result from process variations or component misalignment. Production operations benefit from reduced rework requirements and improved part-to-part repeatability.
Standardized Setup and Process Calibration
Process stability begins with proper machine calibration and standardized setup procedures. Establishing consistent baseline parameters before production runs prevents variation that leads to quality issues.
Key calibration and setup practices:
- Machine calibration verification before production cycles
- Documented parameter settings for specific moulds and materials
- Standardized temperature, pressure, and clamp force configurations
- Material-specific processing recipes maintained in machine controls
Consistent setup routines ensure that process conditions remain stable across different production runs, shifts, and material changes. This foundation supports predictable part quality and reduces troubleshooting time when variations occur.

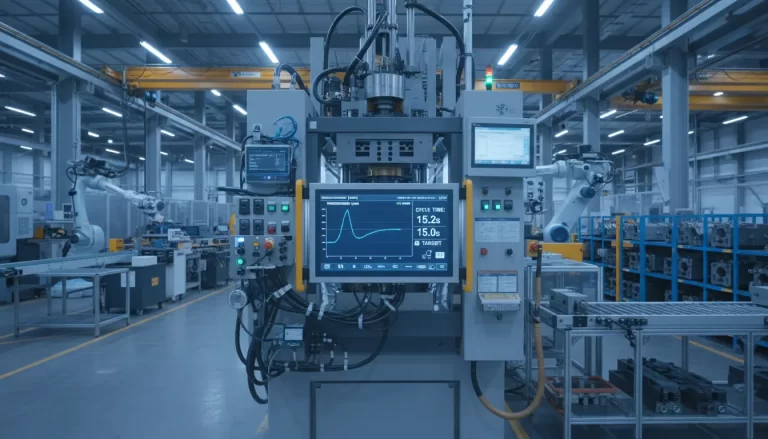

Real-Time Monitoring and Sensor Integration
Real-time process monitoring provides immediate visibility into production conditions. Sensor integration enables operators to identify process drift before it affects part quality or causes mould damage.
Vision camera systems monitor mould cavity clearance and verify complete part ejection. Temperature sensors track barrel zones, mould surfaces, and hydraulic systems. Pressure monitoring records injection pressure profiles and detects variations that indicate fill issues or material inconsistencies.
Data logging captures process parameters throughout production cycles. This information supports trend analysis and helps identify gradual changes in machine performance or material behavior that might otherwise go unnoticed until defects appear.
Inspection at Critical Points in the Production Cycle
Strategic inspection checkpoints throughout the production cycle catch potential quality issues early. Different inspection points serve specific purposes in maintaining part quality and process stability.
Pre-run inspections verify:
- Mould alignment and clamping security
- Insert placement and orientation
- Cooling line connections and flow
- Ejector system operation
In-cycle monitoring confirms:
- Complete cavity fill
- Proper part ejection
- Cycle time consistency
- Process parameter stability
Post-run verification includes:
- Dimensional measurement using calipers and gauges
- Surface quality assessment
- Weight verification for material consistency
- Statistical sampling for high-volume production
The vertical orientation of these machines provides accessible mould areas that simplify visual inspection and measurement activities during setup and production.
Maintaining Tooling and Mould Condition
Mould condition directly affects part quality and production consistency. Regular maintenance prevents wear-related defects and extends tooling life.
Cleaning mould surfaces removes residue buildup that can cause surface defects or dimensional variations. Lubrication of slides, lifters, and moving components ensures smooth operation and prevents galling. Inspection of wear-prone areas identifies damage before it progresses to the point of producing defective parts.
Tracking mould performance history provides insights into maintenance needs. Recording cycle counts, observed wear patterns, and previous repairs helps anticipate when components require attention. The accessible mould area in vertical machines facilitates inspection and maintenance activities without extensive machine teardown.

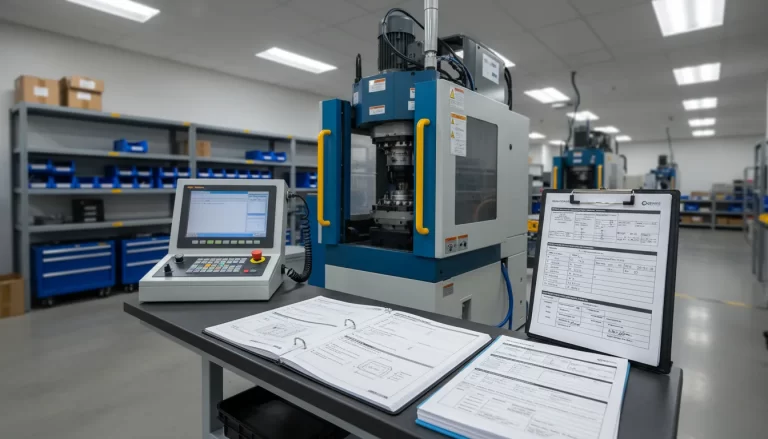

Operator Training and Standard Operating Procedures
Operator proficiency influences quality control effectiveness across all production activities. Training ensures that operators understand machine controls, recognize quality criteria, and identify process faults.
Standard operating procedures establish consistent approaches to machine setup, parameter adjustment, and quality verification. SOPs maintain process consistency between shifts and operators, reducing variation caused by different operational methods.
Documentation of quality issues and their resolutions builds organizational knowledge. Recording defect patterns, root causes, and corrective actions helps prevent recurrence and supports continuous improvement efforts.
Data-Driven Quality Improvements
Process data analysis identifies opportunities for quality improvement. Tracking cycle parameters over time reveals trends that indicate gradual process changes or equipment wear.
Minor pressure variations, temperature drift, or cycle time increases often precede quality issues. Analyzing these trends enables proactive adjustments before defects occur. Statistical process control methods provide structured approaches to monitoring process capability and identifying when intervention is required.
High-volume production operations benefit from systematic data collection and analysis. Comparing current process conditions against historical baselines helps maintain tight control over quality-critical parameters.
Integrating Quality Control with Automation
Automation integration enhances quality control consistency and repeatability. Robotic part handling eliminates variables associated with manual operations, ensuring uniform part removal and placement.
Automated inspection systems perform consistent dimensional checks and surface quality verification. Vision-based systems identify defects with repeatability that exceeds manual inspection capabilities. Integration with machine controls enables automatic process adjustment or cycle rejection when quality criteria are not met.
The open mould area component of vertical machines supports reliable automation integration. Robot access to the mould space facilitates consistent part handling and in-mould assembly operations.
Conclusion
Quality control practices for vertical injection molding machines support consistent output through standardized processes, real-time monitoring, strategic inspection, and systematic maintenance. These practices reduce defect rates while protecting tooling investments and maintaining production efficiency.
Process data analysis and automation integration provide additional capabilities for operations requiring high precision or production volumes. Operator training and documented procedures ensure that quality standards remain consistent across production activities.
